Detailed: 2020 Honda CBR1000RR-R Fireblade

All-new Superbike unveiled alongside up-spec CBR1000RR-R Fireblade SP model.

Honda has uncovered its all-new and highly-anticipated 2020 CBR1000RR-R Fireblade and CBR1000RR-R Fireblade SP models at EICMA in Milan.

For 28 years the words ‘Honda Fireblade’ have been synonymous with perfect handling, balance and sheer riding enjoyment. For 2020, Honda starts a new chapter in the Fireblade’s illustrious history with a new machine that is ‘Born to Race’.

Heavily inspired by the RC213V MotoGP machine and its street-legal RC213V-S counterpart, the 2020 CBR1000RR-R Fireblade is powered by the most powerful inline four-cylinder engine that Honda has ever made.

Image: Supplied.

Sharing the same bore and stroke as the RC213V-S, the 2020 CBR1000RR-R Fireblade delivers maximum power of 160kW at 14500rpm and peak torque of 113Nm at 12500rpm while tipping the scales at only 201kg.

In both variants, a cutting-edge aerodynamic package – also influenced by HRC’s multiple championship-winning RC213V – works in tandem with a new Bosch six-axis IMU.

This replaces the five-axis unit of the previous design, giving supremely precise calculations of yaw, pitch and roll to allow even finer control of bike behaviour for unprecedented levels of handling and outright performance.

Image: Supplied.

In line with Honda’s mass centralisation philosophy, both the CRB1000RR-R Fireblade and CBR1000RR-R Fireblade SP are equipped with a lightweight titanium Akrapovic exhaust end can. Both will be available in two colour schemes: an HRC-inspired Grand Prix Red and a Matte Pearl Black.

From a clean sheet, Honda and HRC’s development engineers set to work creating a new inline four-cylinder engine for the CBR1000RR-R Fireblade.

It’s a compact, short-stroke layout – sharing the bore and stroke of the RC213V – and features a semi-cam gear train, finger-follower rocker arms, titanium con-rods, RC213V-S internal friction reduction technologies, piston jets with check ball system and a built-in bottom bypass passage for the cylinder water jacket.

Image: Supplied.

A ram-air duct in the front fairing feeds through the headstock directly into the airbox. The 4-2-1 exhaust downpipes are ovalized and the end-can has been developed in conjunction with Akrapovic.

Throttle By Wire has been enhanced for improved feel and three default riding modes feature options to change Power, Engine Brake, Wheelie Control and the optimised Honda Selectable Torque Control (HSTC). The electronics package also now includes adjustable Start Mode.

A totally new aluminium diamond frame uses the rear of the engine as the upper shock mount – the swingarm is longer and based on the RC213V-S design. The rigidity balance, weight distribution and steering geometry have been carefully adjusted for the increased engine output, in terms of front and rear grip levels, and feel for both.

Image: Supplied.

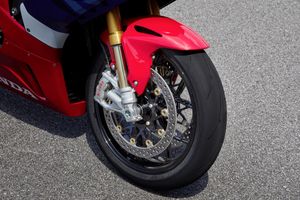

Showa’s 43mm Big Piston Fork (BPF) is matched to a Showa Balance Free Rear Cushion Light (BFRC-L). The front discs are larger in diameter and worked by new Nissin four-piston calipers while the ABS is adjustable for track riding. The rear tyre is now sized 200/55-ZR17.

A six-axis Inertial Measurement Unit (IMU) provides accurate 3D estimation of riding dynamics and provides input to manage all of the electronic systems. It also controls the new rod-type three-level Honda Electronic Steering Damper (HESD).

Honda’s RC213V MotoGP machine has leant some of its slippery aerodynamics to the CBR1000RR-R, including winglets to increase downforce and improve braking stability. The riding position is also much more compact.

Image: Supplied.

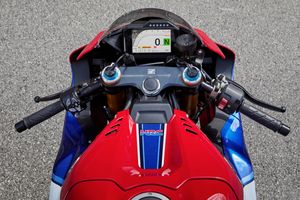

The fully customisable 5-inch TFT display offers intuitive control operated via a simplified four-way switch on the left handlebar. Honda’s Smart Key system adds convenience.

The SP model boasts a new 43mm Ohlins NPX front fork that replaces the NIX fork of the previous model and second-generation Ohlins Object Based Tuning interface (OBTi) offers finer control of settings front and rear. The front discs are larger in diameter and worked by new Brembo Stylema four-piston calipers while the ABS is adjustable for track riding.

Pricing availability in Australia is still to be revealed. For more information, visit www.motorcycles.honda.com.au.
